How to make a DIY Hand Dynamometer ?

Download schematic


Or


Buy it

How to make a Hand Dynamometer ?

Designing a hand dynamometer using a flex sensor to interface with any microprocessor board to measure the grip strength and display value in RAW value.

The flex sensor is by Spectra Symbol and connect a 56K resistor to provide a voltage divider network. The voltage difference is fed into the ADC1 of the PICAXE 28x2 chip. The resultant voltage is then display as a RAW value on the LCD display.


Please goto my instructable.com page for further detail on how to mount the flex sensor on a hand grip execiser.



DIY Hand Dynamometer measruing grip strength .


You can interface it with Aurdino microprocessor, PICAXE, BasicStamp or any other microprocessor chip.

To learn more about the schematic + PICAXE program you can download free by completing a simple survey or buy it here.

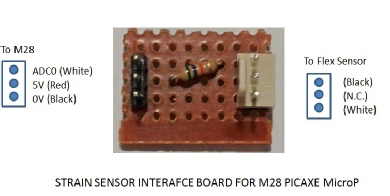

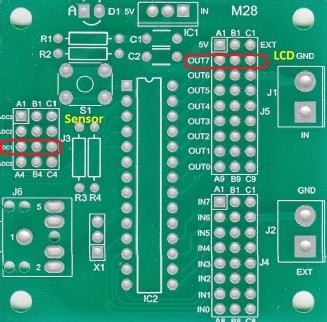

Strain Sesnor Interface Board M28 PICAXE connection
